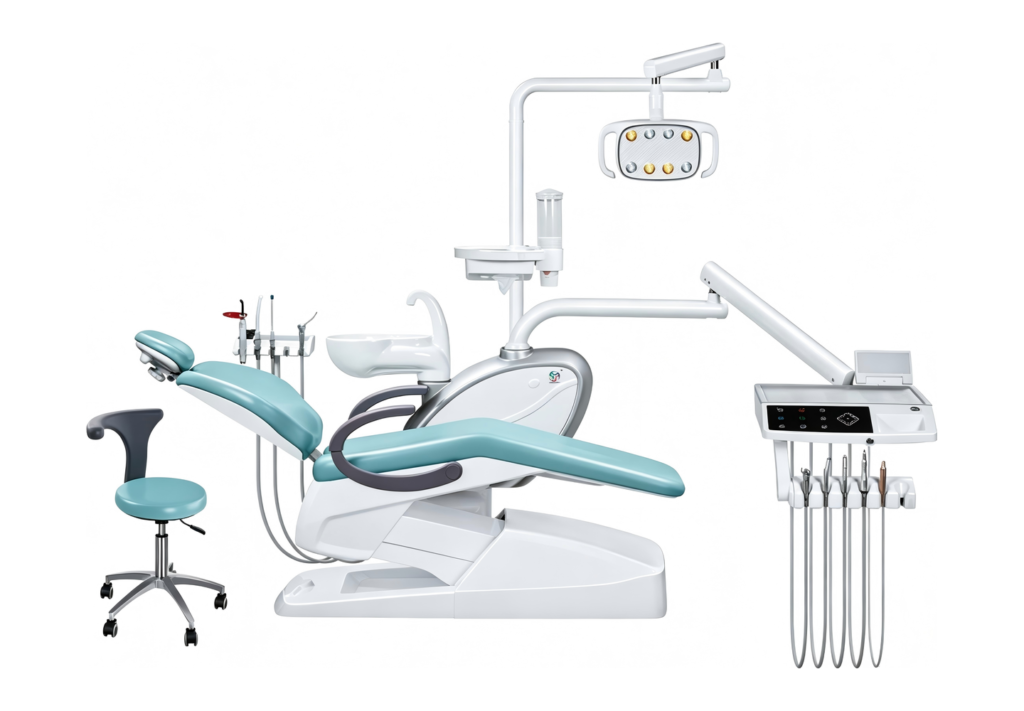

SY3068 Dental Unit

The SY3068 is a complete 24V DC dental treatment unit. The chair runs on a silent DC motor with safety protection, the instrument tray hangs on a pneumatic-brake arm, and the assistant side is built as a two-section arm with high and low volume suction.

Standard Configuration

• 24V DC silent electric chair with safety protection – frame 380-780 mm, load capacity 180 kg, unit 180 x 88 cm
• Automatic spittoon / cup quantitative water supply system (rinse time and cup volume programmable)
• Three-position control system with integrated microcomputer board
• Hanging-down instrument tray with pneumatic brake / interlock – C-shaped 46 x 30 cm, 165° rotation, max 3.5 kg
• Master water / air / power switch with one-key shutdown
• 120° rotatable five-position handpiece holder
• Two-section assistant arm (three joints) with sub-control panel, high/low volume suction and 3-way syringe
• One-piece ceramic spittoon with 90° left / right rotation
• Foldable dual-articulation headrest – 320° rotation, 0-190 mm extension
• Seamless PU leather upholstery (integrated extrusion, vacuum-foamed sponge)
• Detachable dual-pedal foot control
• External plug-in filter cup for high / low volume suction (high volume ≥ 1000 ml/min, low volume ≥ 400 ml/min)
• External 1 L water reservoir
• Eight-LED oral light and LED X-ray film viewer
• Internal / external floor box
• Constant-temperature hot-water 3-way syringe (cold / hot)
• One-piece dual armrests (right side 120° rotatable)
• Bi-directional pneumatic lock balance arm and two-section light arm
• Doctor stool and USB connection

Optional Accessories

• Multi-function 3-in-1 tissue holder
• LED curing light (460-470 nm, > 1200 mW/cm²)
• Built-in Woodpecker ultrasonic scaler (28 kHz)
• High-speed air turbine handpiece
• Pneumatic motor handpiece with straight and contra-angle heads
• Intraoral camera system (8 MP, auto-focus)
• Dedicated oilless air compressor
• Blue Diamond water disinfection system
• Spittoon valve (max drainage 4 L/min)
• UV air steriliser (99 % sterilisation)

Voltage, upholstery colour and handpiece configuration can be customised. Contact us for a quotation.
